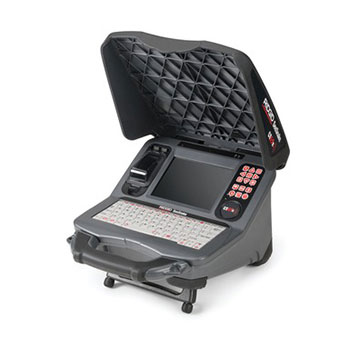

Ridgid 54363 CS65x Digital Reporting Monitor with Wi-Fi

Introducing Ridgid's first digital reporting monitor to include Wi-Fi and Bluetooth® connectivity. With the added ability to stream and/or record inspections to the latest iOS or Android device.

Features

Wi-Fi and Bluetooth

• Stream or record inspections to an iOS or Android phone or tablet with the free HQx Live companion app Storage Options

Storage Options

• Internal solid state drive provides ample storage of images and videos captured from multiple jobs
• Dual USB ports makes for easy delivery of multiple copies of an inspection

Internal GPS

• Geotag media with positional information when available

Water-resistant Keyboard

• Easily add on-screen titles and annotate reports

Daylight Viewable Display

• Provides a crisp, clear, in-pipe image

Specifications

Weight (without battery)	9.3 lb (4.2 kg)
Dimensions (LxWxH)	16” x 12.5” x 9.5” (406 x 319 x 242 mm)
Power Source	18V Advanced Lithium Battery or AC Power Cable
Power Rating	15 to 25 VDC, 25W
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Display	6.5” (165 mm) Color LCD
Display Resolution	640 x 480 Pixels, VGA
Video Format	MPEG4 (H.264) 30 FP
Photo Format	JPEG
Autolog Format	MPEG4 (H.264) Variable Frame Rate
Audio	Integrated Microphone and Speaker
Internal Storage	128 GB SSD
Transfer Method	USB Drive
